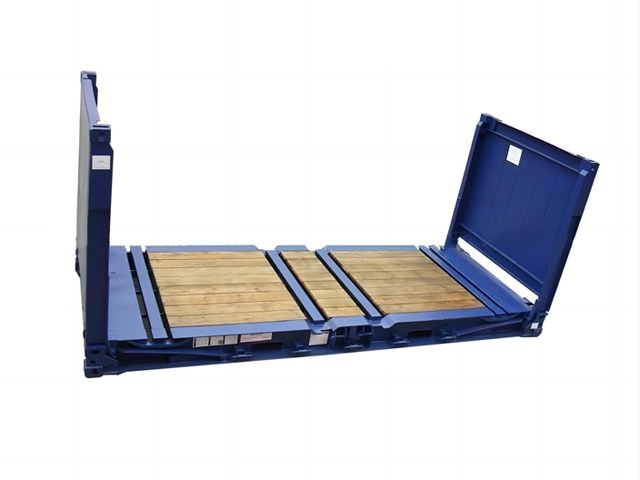

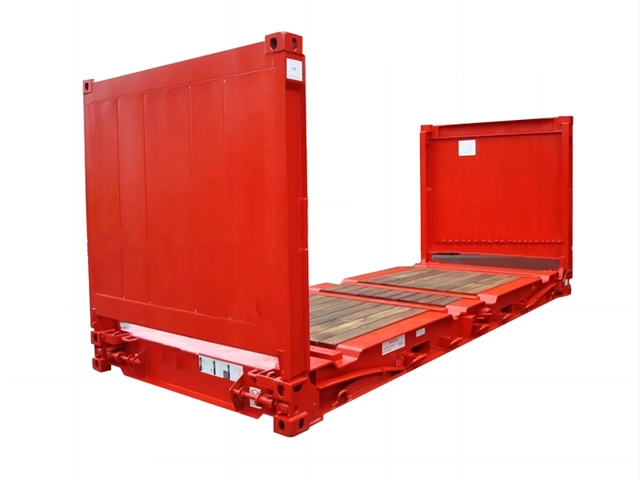

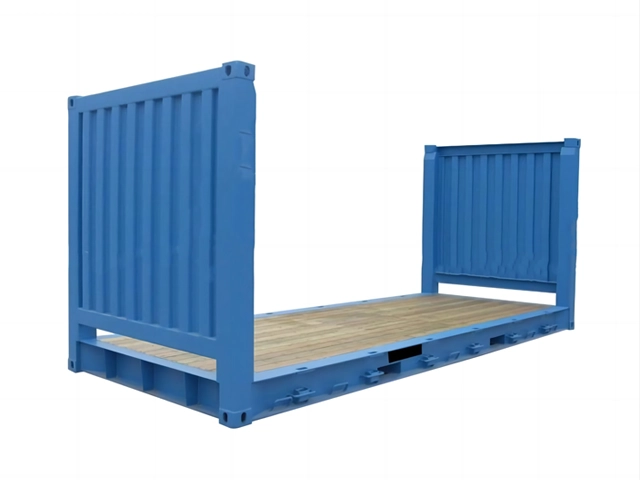

20ft Flat Racks

The 20ft Flat Rack Container is designed for transporting oversized cargo that doesn’t fit into standard containers. With collapsible ends and no side walls, it’s ideal for heavy machinery, vehicles, pipes, and industrial equipment. They are compatible with major shipping lines and port handling equipment, ensuring seamless integration into global supply chains.

Open design allows top or side loading via crane or forklift.
Suitable for sea freight, rail transport, and trucking.
Built-in lashing points ensure cargo remains stable during transit.
Collapsible ends allow stacking when not in use.

KEY FEATURES

20-Foot Flat Rack Container

Versatility

Flat racks are versatile for transporting irregularly shaped or oversized cargo. Their open sides and collapsible end walls allow for flexibility in loading and securing items.

Heavy Cargo Transport

Flat racks are ideal for heavy machinery, pipes, steel coils, vehicles, and other bulky goods.

Easy Loading and Unloading

The lack of sidewalls simplifies loading and unloading processes.

Collapsible Design

Some flat racks can be collapsed when not in use, saving space during return shipments.

Stability

Flat racks have strong corner posts and base structures, ensuring stability during transit.

Cost-Effective

Compared to specialized containers, flat racks are cost-effective for specific cargo types.

INFORMATION

Dimensions of 20ft Flat Racks

The dimensions and door openings of all containers correspond to ISO standards. However, due to production tolerances, a difference in measurement is possible.

External Dimensions
Length (Base bottom casting)	6,058 mm	19’ 10.5”
Width (Base bottom casting)	2,438 mm	8’ 0.0”
Height (End frame up)	2,591 mm	8’ 6.0”
Height (End frame down)	370 mm	1’ 2.6”
